When planning a steel structure warehouse or prefabricated industrial building, one of the most critical—and often underestimated—decisions is selecting the right sandwich panel core material. The insulated metal panel you choose affects not only the upfront budget, but also fire safety compliance, thermal efficiency, condensation control, acoustic performance, and long-term operating costs.

There is no universally "best" sandwich panel. The right choice depends on your project's priority: budget, insulation, fire rating, or a balance of all three. In this guide, we break down the four most common core materials—EPS, PU, PIR, and Rockwool (Mineral Wool)—to help you make an informed decision.

What Is a Sandwich Panel?

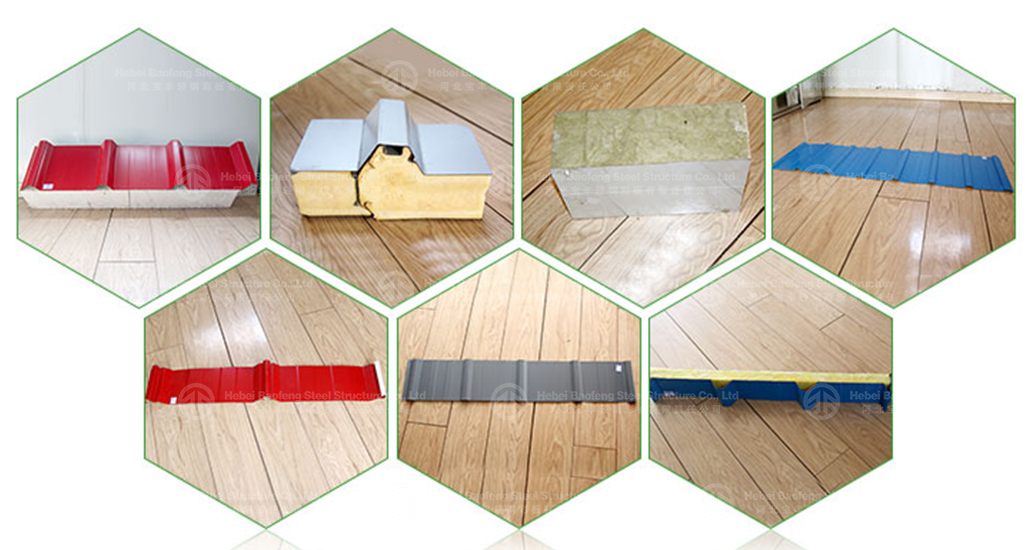

A sandwich panel consists of two outer metal skins (typically color-coated galvanized steel or aluminum) bonded to an insulating core. For steel warehouses, it serves as both the envelope/cladding and the thermal barrier in a single product. Common applications include:

Warehouse wall cladding

Roof panels for PEB (Pre-Engineered Building) structures

Cold storage and temperature-controlled logistics centers

Fire-rated partition walls in industrial plants

EPS (Expanded Polystyrene) Sandwich Panels

Pros:

Lowest initial cost among all core types

Lightweight (6–20 kg/m³), easy to transport and install

Adequate thermal insulation for non-temperature-controlled storage

Cons:

Limited fire resistance—typically B2/B1, melts under direct flame

Can absorb moisture over time if panel seals are compromised

Not suitable for cold storage or fire-code-strict projects

Recommended for: General storage warehouses in mild climates, agricultural buildings, temporary site offices, and budget-driven industrial sheds where fire rating is not a regulatory requirement.

PU (Polyurethane) Sandwich Panels

Pros:

Among the lowest thermal conductivity of common building insulations—thinner panels achieve high R-values

Closed-cell structure resists moisture penetration

Good structural rigidity and air-tightness

Cons:

Standard PU is combustible (B2/B1); verify flame-retardant formulation

Higher upfront cost than EPS

Requires proper sealing during installation to maintain performance

Recommended for: Cold storage facilities, food processing plants, refrigerated logistics centers, and warehouses in extreme hot or cold climates where energy efficiency is a priority.

PIR (Polyisocyanurate) Sandwich Panels

Pros:

Same excellent thermal performance as PU

Enhanced fire behavior—forms a charred, non-dripping layer when exposed to fire (B-s1,d0 / B1 class)

Increasingly accepted in projects requiring both energy efficiency and improved fire safety

Cons:

Slightly higher cost than standard PU panels

Still not fully non-combustible like rockwool

Recommended for: Pharmaceutical warehouses, high-end cold chain logistics, export-oriented industrial parks, and buildings subject to strict local fire codes that still require high thermal performance.

Rockwool (Mineral Wool) Sandwich Panels

Pros:

A1 non-combustible—withstands temperatures >1000 °C

Excellent sound absorption and acoustic dampening

Meets the strictest fire safety regulations (FM, EN, ASTM standards)

Cons:

Heaviest core option (100–150 kg/m³)—may increase steel frame loading

Slightly lower thermal insulation per mm vs. PU/PIR (requires greater thickness for same U-value)

Can absorb moisture if not properly flashed/sealed in very humid environments

Recommended for: Chemical plants, paint booths, textile factories, fire-rated partition walls, and any facility where fire safety or noise control is non-negotiable.

How to Choose the Right Panel Thickness

Panel thickness is driven by climate, indoor temperature requirement, and local energy/fire codes:

50 mm – Mild climates, general storage, budget-focused projects

75–100 mm – Most common for balanced thermal performance in standard industrial warehouses

100–150 mm – Cold regions, cold storage, or buildings with strict condensation/energy targets
