1. Mechanical principle of portal steel frame:

The structure is mainly composed of columns and beams. The transverse steel frame is the main stress structure, and the steel frame is a plane stress system. In order to ensure longitudinal stability, roof support and inter-column support are provided.

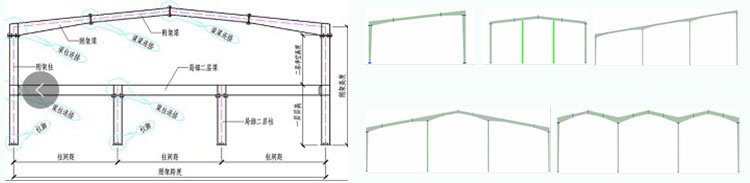

2. Steel frame form：

Portal steel frame;

Portal steel frame with crane beam;

With partial two-layer portal steel frame;

Multilayer portal steel frame

3. Derived form of steel frame：

Single slope and single span;

Gable steel frame;

Single slope continuous span;

Even across a single ridge;

Even across multiple roofs

The scope of application of portal rigid frame is light industrial buildings, single-storey house steel structures without bridge cranes or only medium and light working bridge cranes or 3t suspension cranes with a lifting capacity of not more than 20t. Due to the thin thickness of the portal frame member, it is not suitable for use in environments with strong corrosive media.
