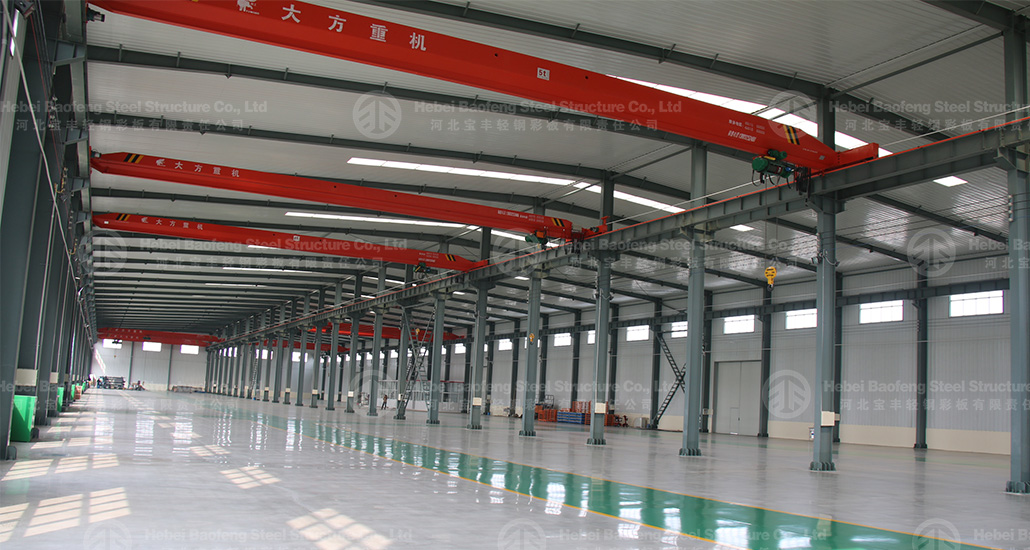

Installing an overhead crane in a steel structure workshop requires careful planning and execution to ensure safety, stability, and long-term reliability. Below are the key precautions and best practices for a successful installation:

1. Structural & Foundation Precautions

A. Proper Foundation Design & Reinforcement

Check Load Capacity:

Ensure the workshop’s columns, beams, and foundation can support the crane’s static and dynamic loads (including hoisting, moving, and braking forces).

Use structural calculations (by a qualified engineer) to confirm the workshop’s ability to handle the crane’s weight and operational stresses.

Reinforce Weak Areas:

If the existing structure is insufficient, add additional steel supports, stiffeners, or bracing before crane installation.

Anchor Points for Runway Beams:

The runway beams must be securely anchored to the workshop’s columns or walls using high-strength bolts or welding (if permitted).

B. Runway Beam Installation

Alignment & Leveling:

Ensure runway beams are straight, level, and properly spaced to prevent uneven crane movement.

Use laser levels or surveying tools for precise alignment.

Deflection Check:

Runway beams should not deflect more than the manufacturer’s specified limit (usually L/800 to L/1000, where L = span length).

Welding & Bolting:

If welding is used, ensure full penetration welds and post-weld heat treatment (if required).

For bolted connections, use high-strength bolts (Grade 8 or higher) and proper torque specifications.

2. Crane Installation Precautions

A. Crane Assembly & Erection

Follow Manufacturer’s Guidelines:

Strictly adhere to the crane manufacturer’s installation manual for assembly, alignment, and testing.

Proper Lifting Techniques:

Use a mobile crane or auxiliary lifting equipment to assemble the crane, ensuring proper rigging and load distribution.

Avoid overloading temporary lifting equipment.

Wheel & Rail Alignment:

Ensure crane wheels are properly aligned with runway rails to prevent wheel chatter, derailment, or uneven wear.

Use laser alignment tools for precise positioning.

B. Electrical & Control Systems

Proper Wiring & Grounding:

Ensure all electrical connections are secure, insulated, and properly grounded to prevent shocks or short circuits.

Use explosion-proof wiring if working in hazardous environments (e.g., welding fumes).

Overload Protection & Safety Devices:

Install load limiters, anti-collision sensors, and emergency stop buttons for safety.

Ensure the control system is compatible with the crane’s power requirements.

C. Hoist & Rope Installation

Proper Rope Installation:

Install steel wire ropes correctly to avoid kinking, twisting, or improper spooling.

Ensure the rope is tensioned as per manufacturer specifications.

Hoist Alignment & Braking System:

The hoist must be vertically aligned with the runway to prevent side loads.

Test the braking system to ensure it stops the load smoothly without slipping.

3. Safety & Operational Precautions

A. Load Testing & Commissioning

Static Load Test (125% of Rated Capacity):

Lift a test load (125% of the crane’s rated capacity) to check for structural integrity and deflection.

Dynamic Load Test (110% of Rated Capacity):

Test the crane under moving and braking conditions to ensure stability.

Braking & Emergency Stop Tests:

Verify that the crane stops smoothly and safely under load.

B. Operator & Maintenance Training

Certified Crane Operators:

Only trained and certified operators should handle the crane.

Regular Maintenance Schedule:

Establish a preventive maintenance plan (daily, weekly, monthly checks) to prevent failures.

C. Anti-Collision & Safety Systems

Install Anti-Collision Sensors:

Prevent crane-to-crane or crane-to-structure collisions in multi-crane workshops.

Warning Lights & Alarms:

Use audible alarms and flashing lights for visibility and safety.

4. Environmental & Corrosion Protection

Protect Against Welding Fumes & Moisture:

Apply anti-corrosion coatings (paint, galvanization) on exposed steel parts.

Regularly clean the crane to remove dust and debris.

Weatherproofing (if outdoor):

If the workshop is open-sided, use weather-resistant materials and corrosion protection.

5. Legal & Compliance Checks

Permits & Inspections:

Obtain necessary building permits before installation.

Have the installation inspected by a certified structural engineer or crane inspector before operation.

OSHA/Local Regulations Compliance:

Ensure the crane meets OSHA (or local equivalent) safety standards for overhead cranes.

Conclusion

Installing an overhead crane in a steel structure workshop requires:

✅ Proper structural reinforcement

✅ Accurate alignment & leveling

✅ Safe lifting & assembly techniques

✅ Comprehensive electrical & safety systems

✅ Rigorous testing & operator training

Failure to follow these precautions can lead to:

⚠️ Structural failure (beam collapse, runway misalignment)

⚠️ Crane accidents (derailment, load drops)

⚠️ Increased maintenance costs (premature wear)
