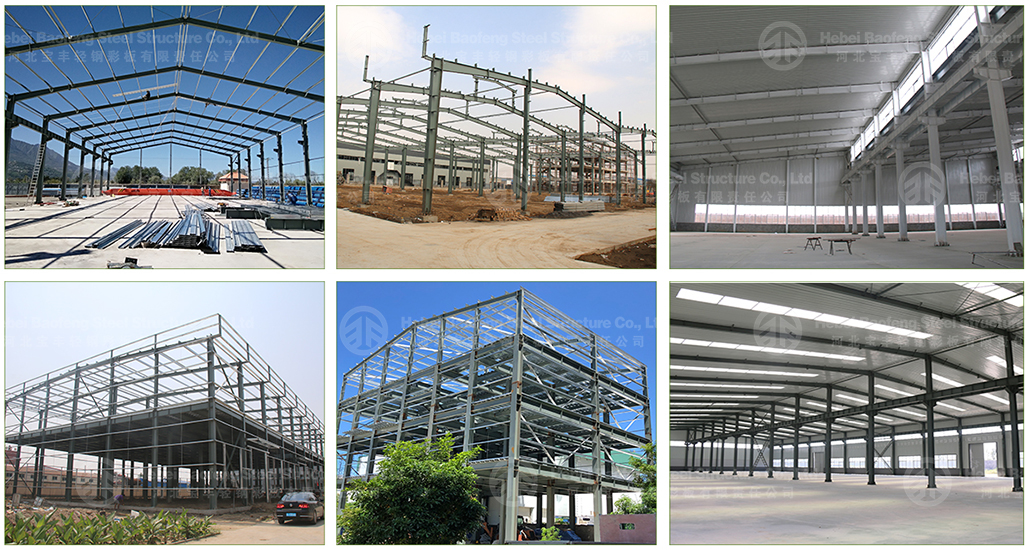

Pre-engineered steel buildings (PEBs) are the go-to solution for warehouses, factories, and logistics hubs. But their efficiency hinges on a critical balance: designing for ultimate strength (safety under extreme loads) while ensuring serviceability (comfort and functionality during everyday use). This blog breaks down the engineering methods that achieve this dual objective.

The Two Pillars of PEB Design

Before diving into calculations, it’s essential to understand the two design states that govern PEB engineering:

Ultimate Limit State (ULS): This is about survival. It ensures the building won’t collapse under maximum expected loads (like a once-in-50-years wind storm or a heavy crane lift).

Serviceability Limit State (SLS): This is about comfort. It limits deflections, sway, and vibration to levels that feel stable to occupants and don’t damage cladding or equipment.

Step 1: Mapping the Load Landscape

PEB design starts with a precise quantification of all forces acting on the structure. Unlike conventional buildings, PEBs are highly sensitive to lateral and uplift forces due to their lightweight nature.

Tip: A common error is underestimating collateral loads (e.g., future solar panels, heavy HVAC). Always add a contingency (e.g., 0.1–0.3 kN/m²) to the dead load to avoid costly retrofits later

Step 2: Critical Load Combinations

You don’t design for each load in isolation. The real art is combining them for the worst-case scenario. Software like STAAD.Pro or ETABS automates this, but engineers must understand the logic.

Typical ULS Combinations (Strength Check):

1.5(DL + LL)

1.2(DL + LL + WL)

0.9DL + 1.5WL(This checks for uplift/overturning!)

1.2(DL + LL + EL)

SLS Combinations (Comfort Check):

DL + LL(for deflection)

DL + Wind(for sway)

Step 3: Comfort and Serviceability Design (The "Feel-Good" Factor)

This is where PEBs differentiate from conventional steel. Lightweight structures are more prone to vibration and noticeable movement. Ignoring SLS leads to "bouncy" floors and leaking roofs.

A. Deflection Control

Excessive deflection cracks interior finishes and creates ponding on roofs.

Vertical Deflection (Roof Purlins/Girts): Limit is typically Span/150 to Span/240 under live load.

Horizontal Deflection (Side Sway): Limit is Height/300 to Height/400 under wind load.

B. Vibration Control

This is critical for buildings with cranes, mezzanines, or sensitive equipment. The goal is to avoid resonant frequencies that cause discomfort.

Mezzanine Floors: Natural frequency should be kept above 4–8 Hz to prevent perceptible vibration from footfall.

Crane Runways: Deflection limits are stricter (e.g., Span/600) to ensure smooth crane operation.

Step 4: Thermal and Acoustic Comfort

"Comfort" isn’t just structural. Steel is an excellent conductor of heat, which can lead to condensation and poor thermal performance.

Insulation Strategy: Use sandwich panels (with PUF or rockwool core) instead of single skin to achieve better U-values. This reduces energy costs and prevents "rain" from condensation.

Ventilation: Ridge vents and louvers are not just accessories; they are part of the load design for wind-induced ventilation and thermal buoyancy.

Best Practices for Optimized Design

Early Input: Decide on crane capacity, mezzanine locations, and future expansion before design begins. Changing bay spacing mid-design is expensive.

Software + Manual Check: While 3D analysis is standard, always manually spot-check critical connections (e.g., column base plates for uplift) for sanity.

Foundation Feedback: The PEB frame is rigid, but the soil isn’t. Coordinate column reactions with the geotechnical report to avoid differential settlement that can twist the entire frame.

Conclusion

Designing a PEB isn’t just about making it stand up. It’s about making it stand up gracefully under extreme loads while providing a comfortable, durable environment for its occupants. By rigorously applying both ULS and SLS criteria, engineers can deliver buildings that are not only safe but also efficient and pleasant to work in.
