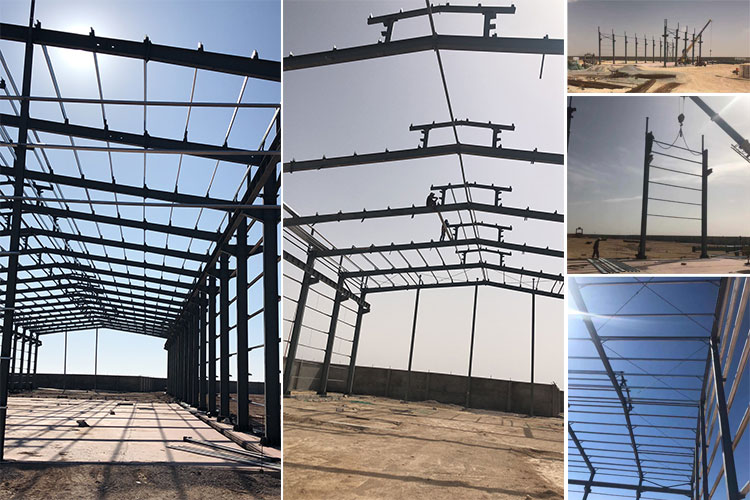

Algeria steel structure production workshop

Size: 24x96x10m

Area: 2304sqm

Mode of transportation:

Container specification (40 feet high cabinet) container quantity (10)

Material: steel

Door:

4 sets of electric shutter doors W4500*H5000mm

Window:

pvc strip window L94xH1.2mx2 sets; L22xH1.2mx2 sets

pvc window W3000xH2200mmx23 sets

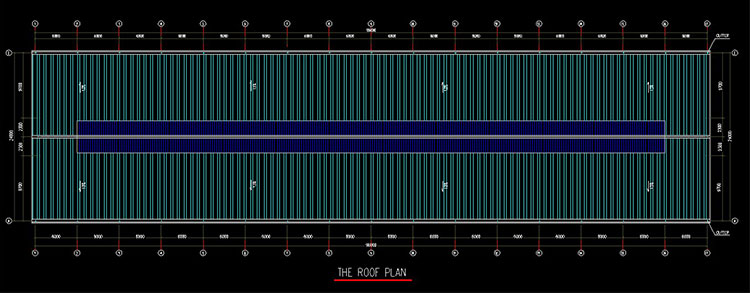

Roof：

EPS composite board V970 50mm 7kg

The upper plate iron gray 0.4mm, the lower plate white 0.3mm

Wall panel:

EPS composite panel V950 50mm 7kg

The upper plate iron gray 0.4mm, the lower plate white 0.3mm

If you are interested in out products,plz give us the following information:

(1) Dimension: Length, width, height, eave height, roof pitch, etc.

(2) Doors and windows: Dimension, quantity, position.

(3) Local climate: Wind speed, snow load, seismic magnitude etc.

(4) Insulation material: Panel type, sandwich materials, sandwich thickness

(5) Crane beam: Do you need crane beam inside the steel structure? And its load.

(6) Is there any materials that are not allowed to import to the country where the structure is planning to use?

(7) If you have other requirements, such as fire proofing, insulated roof, etc. Please also inform us.

(8) It's better if you have your own drawings or pictures. Please send them to us.
