Steel warehouse and prefabricated house manufacturer
Products
Home

Steel Poultry Farm

Two-story chicken coop exported to the Philippines

Two-story chicken coop exported to the Philippines

Two story h-beam poultry farming

  • Item No.:

    Js-16
  • Payment:

    T/T & L/C
  • Market price:

    $16
  • Product origin:

    Hebei,China
  • Shipping port:

    Tianjin
  • Lead Time:

    about 30 days
  • Price:

    29-39usd/sqm
  • Product Details

Prefab Steel Structure Chicken Farm Classification

1.Based on the chicken raising type, free range raising and cage raising, the poultry house divided into free range raising type and cage raising type poultry house.

2.15-18 broilers per square meter, 18-20 laying hens per square meter.

Prefab Steel Structure Chicken Farm


Main Features
1)Perfect way to offer protection to your pets whilst also giving them the freedom to access fresh air.
2)High quality, steel galvanised frames are designed to last for years and offer peace of mind to the welfare of your animals

3)Super fast shipping from China.

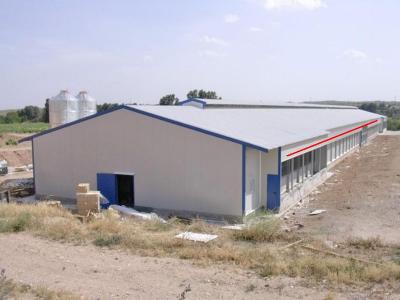

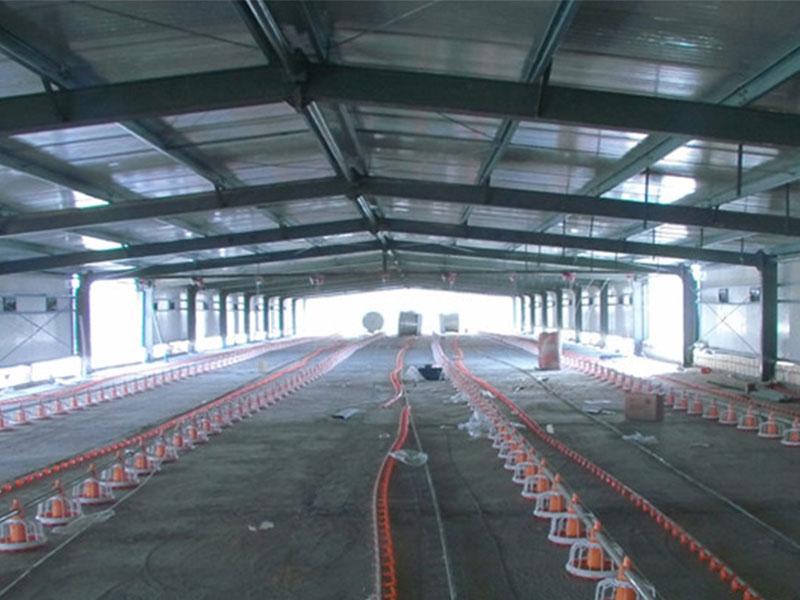

Steel structure poultry house is made of light weight steel structure, it's widely used for the chicken, sheep, cow, etc. The roof can be made of corrugated steel sheet or sandwich panel which has good insulation performance. The wall is built with steel mesh or sandwich panel. Both the wall and the roof have contributed to ensure an excellent insulation performance, therefore the shed is very resistant to wind, impact and climate change.

We have professional designers who can design solutions for you according to your different needs, so no matter what kind of chicken house you want, we will try our best to realize it for you.


Steel structure production process


1. Using automated equipment - CNC flame cutting machine, the steel plate will be cut into main steel components

Advantages: 1> Accurate cutting, error±2mm; 2> High production efficiency, can cut 150-200 tons of plates a day;


2. Use automated equipment - CNC drilling machine for small parts production

Advantages: fast speed, high precision, deviation≤1mm, to ensure 100% installation error-free


3. Use automatic equipment--straightening and welding integrated machine, H-beam assembly, submerged arc welding, and straightening three processes into one

Advantages: The error of the finished product is +—2mm, and the finished product is produced about 25 meters per hour, which greatly improves production efficiency.

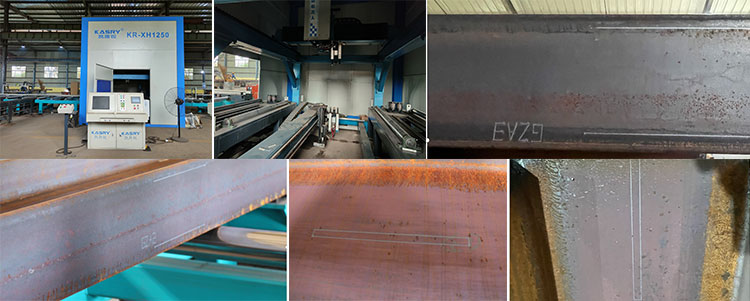

4. Use the section steel intelligent marking robot to mark the welding position of the four sides of the section steel and mark the component number

Advantages: high accuracy, can be temporarily or permanently marked. It replaces the manual measurement of the later assembly team, which improves the production efficiency of the later production process by more than 80%


5. Use the steel cutting robot for thermal cutting of H-beam, I-beam, etc.

Advantages: The error range is within 2mm; the cutting port is smooth and beautiful, which is convenient for the later welding of the welding port; the tedious process of artificial incision and post-grinding is omitted; the cutting efficiency is fast, and the output can reach up to 50T/day.


6. Assemble the connecting plate; perform local spot welding by electric welding; check the dimensions to ensure that the dimensions of each component conform to the drawings.


7. Solder all the connections in the assembly process

Advantages: high productivity in cross-operation with assembly process, fast welding efficiency


8. Shot blasting and derusting process

Through the impact and cutting action of the spray material on the profiled steel, the surface rust of the profiled steel is removed to increase the roughness, and manual slag removal treatment is also performed.

Advantages: very good preparation for painting, enhanced adhesion of the coating to the profiled steel, extended durability of the coating film


9. Spray paint

Spray paint according to the drawings and customer requirements, and spray 4 times. After completion, the surface of the component will not sag, no bubbles, no cracks, and the color is uniform and beautiful.


10. Composite board/veneer production

Composite board production machine: 2000 square meters can be produced a day;

Veneer production machine: can produce 10,000 meters a day;


11. C section steel production

High production efficiency, can produce 5000 meters a day

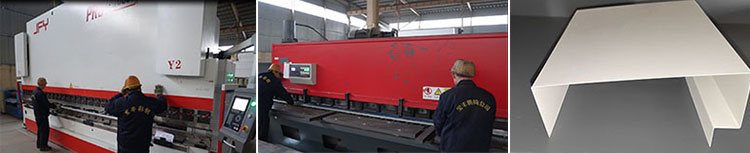

12. Accessories production

Production of accessories such as bending parts;



Company Profile
Hebei Baofeng Steel Structure Co., Ltd. is located in Cangzhou City, Hebei Province, 150 kilometers away from Tianjin Port, convenient for transportation.
The company is a professional steel structure manufacturer with 20 years of production experience; it has scientific and advanced technical support and a number of perfect standardized production lines; professional and experienced designers, we will provide you free of charge according to your requirements. Create a unique steel structure design.


If you need it, please answer the following questions so that we can serve you in time:
1>what about the length width height you need build?
2>Or how many chickens do you want to raise?boiler or layer?
3>Do you have a drawing of your chicken house?
4>Where is your project site?
